Product Introduction
About SUPERVAC

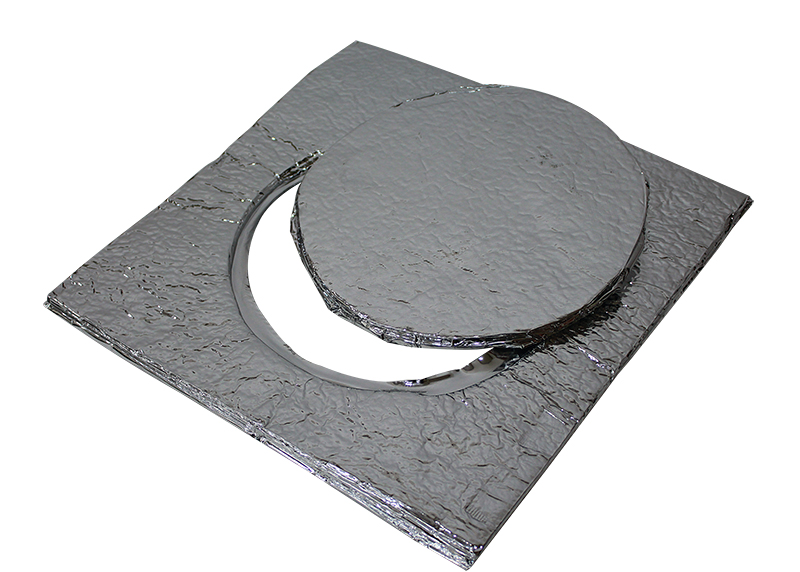

SUPERVAC® is
a vacuum insulated panel (VIP) with excellent insulation performance produced by vacating the enclosure of the insulated panel, thereby preventing heat conduction and convection and resulting in very low amounts of heat transfer.
Heat Conductivity
0.00177W/m∙k
- Provides insulation performance that is 10 times better than conventional insulation materials
- Outstanding insulation performance reduces heating and cooling bills of building structures by up to 70%
20mm
- Thickness of 20 mm or less satisfies insulation standards for all parts of building structures
- Reduced thickness reduces use of materials such as anchor bolts
Noncombustible material
- Satisfies standards for noncombustible materials under Announcement 2015-744 of the Ministry of Land, Transport and Maritime Affairs
- Made of level 1 fire retardant materials, preventing the generation and spread of toxic gas during a fire
Insulation Principle
General insulation material
Heat transfer through fine layers of air
Vacuum insulated panel
Insulation / Vacuum interior eliminates heat conduction and convection, outer aluminum cover reflects radiation
Product Structure
FILM
Prevents external moisture and gas from entering into the panel
Dry lamination of multi-layer film
GETTER
Absorbs residual gas and moisture
Composed of oxides and metal substances
CORE
Fiber Glass
Eco-friendly and noncombustible material
Product Specifications
| Property | SUPERVAC® |
| Thermal conductivity | 0.0021W/m· K below |
| Density | 250~350kg / m³ |
| Thickness | 10 ~ 40mm |
| Basic specifications | 450 × 900 |
| Operating temperature | -50 ~ 80 Degree, Centigrade |
| Fire resistance | Noncombustible |
